| Brand Name: | SUNCAR |
| Model Number: | 1543275C1 |
| MOQ: | Acceptable Trial Order |
| Price: | Negotiation |
| Packaging Details: | PP BAG & CARTON BOX |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |

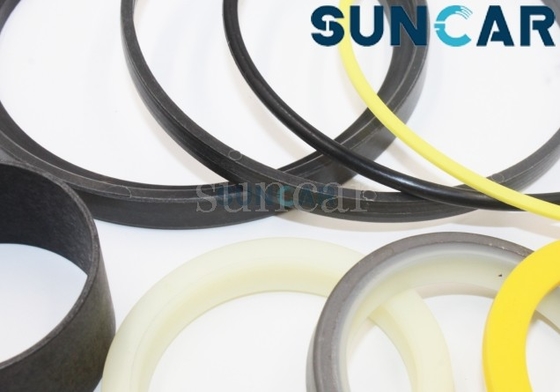

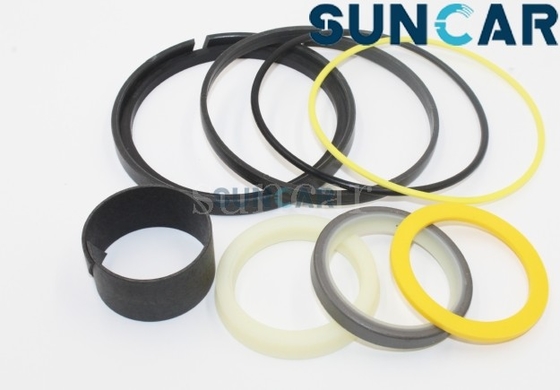

1543275C1 BACKHOE STABILIZER CYLINDER SEAL KIT FOR CASE LOADER BACKHOE 1150K, 580SM, 580SL, 580SK, 580SM
| Product Name | 1543275C1 BACKHOE STABILIZER CYLINDER SEAL KIT FOR CASE LOADER BACKHOE 1150K, 580SM, 580SL, 580SK, 580SM |
|---|---|
| Part No. | 1543275C1 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Applicable Industries | Machinery repair shops, construction works, energy |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | CASE |
| Condition | New |
| Suitable Model |
(1150K) - SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-12/13)
|
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | G101186 | [1] | CYLINDER | CAS ASSEMBLY - 2-1/2 inch (64 mm) ID x 20 inch (508 mm) stroke, bucket, right-hand, Includes: Ref. 2 - 25 |
| 1 | G101187 | [1] | CYLINDER | CAS ASSEMBLY - 2-1/2 inch (64 mm) ID x 20 inch (508 mm) stroke, bucket, left-hand, Includes: Ref. 2 - 25 |
| 2 | D31098 | [1] | TUBE | CAS ASSEMBLY - right-hand cylinder, Includes: Ref. 3 |
| 2 | D31099 | [1] | TUBE | CAS ASSEMBLY - left-hand cylinder, Includes: Ref. 3 |
| 3 | G103411 | [2] | BUSHING,38mm ID x 47.4mm OD x 20.57mm L | CAS - tube trunnion |
| . . | G104008 | [1] | GLAND | CAS ASSEMBLY - cylinder, no longer available, order Ref. 19, 1542960C1 gland and 1543253C1 seal kit below, Includes: Ref. 4 - 9 Superseded by part number: 1543258C1, 1542960C1 |
| 4 | NSS | [1] | NOT SOLD SEPARAT | CON GLAND - cylinder |
| 5 | D95142 | [1] | WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk | CAS WIPER - piston rod, outer Superseded by part number: 86631610 |
| 6 | G107921 | [1] | SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk | CAS - U-cup, with O-ring, piston rod, wide |
| 6 | G100776 | [1] | SEAL | CAS - U-cup, piston rod, service option - severe heat or cold |
| 7 | G109093 | [1] | SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk | CAS - buffer, grooved, piston rod, narrow |
| 8 | G32129 | [1] | BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk | CAS - backup, gland O-ring |
| 9 | 238-5230 | [1] | O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro | CAS Superseded by part number: 70923815 |
| 10 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" | CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312 |
| 11 | G33422 | [1] | ROD | CAS ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, Includes: Ref. 12 |
| 12 | D30929 | [1] | BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L | CAS - rod |
| 13 | G100706 | [1] | PISTON | CAS - cylinder |
| 14 | G102289 | [1] | SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk | CAS - piston |
| 15 | G100713 | [1] | SEALING RING,Square, 5.28mm Thk x 49.91mm ID | CAS RING - backup, piston seal |
| 16 | G100714 | [2] | RING | CAS - wear, piston |
| 17 | 25863R1 | [1] | BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8 | IH |
| 18 | G32317 | [1] | WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk | CAS - hardened Superseded by part number: D34666 |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON GLAND ASSEMBLY - cylinder, Includes: Ref. 19 - 25 |
| 19 | 1542960C1 | [1] | GLAND | IH - cylinder |
| 20 | D95142 | [1] | WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk | CAS WIPER - piston rod Superseded by part number: 86631610 |
| 21 | 1542874C1 | [1] | SEAL KIT,38.1mm Rod | CAS KIT, SEALS, NSS, Not shown, Order 1543253C1, Incl Ref 22 and 23 |
| 22 | 1542997C1 | [1] | SEALING RING | CAS - rod, NSS, order 1543253C1 kit below |
| 23 | 1542996C1 | [1] | SEAL | BHB - buffer, NSS, order 1543253C1 kit below |
| 24 | 238-5230 | [1] | O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro | CAS Superseded by part number: 70923815 |
| 25 | G32129 | [1] | BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk | CAS - backup, gland O-ring |
| . . | G109456 | [1] | GASKET KIT | CAS KIT - seal, Includes: Ref. 5, 6 (P/N G107921), 7 - 9 and 14 - 16, no longer available, order 1543253C1 kit below Superseded by part number: 1543253C1 |
| . . | 1543253C1 | [1] | SEAL KIT,Repair, 63.5 x 38.1 | IH KIT - seal, Includes: Ref. 7, 14 - 16, 20 - 25 and an instruction sheet |
PRODUCT SHOW:
|
|
