| Brand Name: | SUNCAR |
| Model Number: | LZ00444 CASE CX240 CX290 |
| MOQ: | Trial order acceptiable |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
LZ00444 Bucket Cylinder Sealing Kit CX240 CX290 CASE Crawler Excavator Inner Repair Kits
| Product name | LZ00444 Bucket Cylinder Sealing Kit |
| Model Number | CX240 CX290 CASE |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Hardness | 70degree-95degree A |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Delivery time | 5-7 Days |
| Shipping Mode | By air, by sea, by express ( Fedex, UPS, DHL, TNT) |
| Part No. | LZ00444 |
| Warranty | Unavailable |
| Size | Standard |
| Type | hydraulic cylinder seal kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion |
CASE Crawler Excavator |
Storage Precautions:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. Do not place the seal near the motor or where ozone is generated.
6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
8. The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.

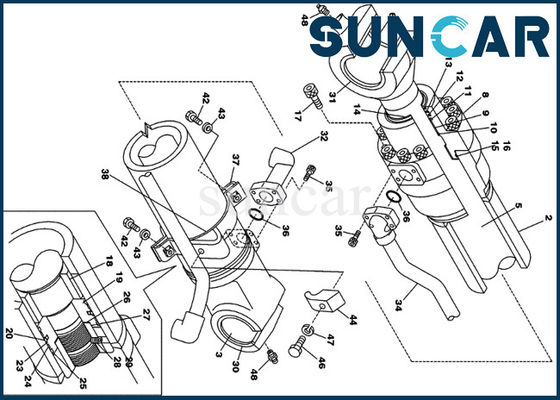

Hydraulic Cylinder Related Parts:
| Pos. | Part No | Qty | Parts name |
| KBV1790 | [1] | BUCKET CYLINDER | |
| LR00657 | [1] | HYD TUBE | |
| 3 | 160051A1 | [1] | BUSHING |
| LB00628 | [1] | PISTON ROD | |
| 6 | 160052A1 | [1] | BUSHING |
| 8 | LU00115 | [1] | CYLINDER END CAP |
| 9 | 160050A1 | [1] | BUSHING |
| 10 | 155713A1 | [1] | RING, SNAP |
| 11 | LE00479 | [1] | RING |
| 12 | 158847A1 | [1] | RING |
| 13 | 155249A1 | [1] | BACK-UP RING |
| 14 | 161877A1 | [1] | BACK-UP RING |
| 15 | 154769A1 | [1] | O-RING |
| 16 | LE00433 | [1] | BACK-UP RING |
| 17 | 863-18080 | [10] | HEX SOC SCREW |
| 18 | 160122A1 | [1] | RING |
| 19 | 160215A1 | [1] | PISTON |
| 20 | 155323A1 | [1] | SEALING RING |
| 23 | 159993A1 | [2] | BACK-UP RING |
| 24 | LE00763 | [2] | SCRAPER RING |
| 25 | 155319A1 | [2] | RING |
| 26 | 155722A1 | [1] | SHIM |
| 27 | LA00736 | [1] | SPECIAL NUT |
| 28 | 156223A1 | [1] | SET SCREW |
| 29 | 155977A1 | [1] | BALL |
| 30 | 160483A1 | [2] | BACK-UP RING |
| 31 | 162962A1 | [2] | WIPER SEAL |
| 32 | LK00289 | [2] | TUBE |
| 34 | LR00676 | [2] | TUBE |
| 35 | 862-10030 | [8] | HEX SOC SCREW |
| 36 | 154528A1 | [2] | O-RING |
| 37 | LD00041 | [1] | CLAMP BRACKET |
| 38 | LD00042 | [1] | MOUNTING CLIP |
| 42 | 158131A1 | [2] | BOLT |
| 43 | 156227A1 | [2] | WASHER |
| 44 | 155717A1 | [1] | COLLAR |
| 46 | 628-12055 | [1] | BOLT |
| 47 | 892-10012 | [1] | LOCK WASHER,M12 |
| 48 | 153630A1 | [2] | LUBE NIPPLE |
| LZ00444 | [1] | SEAL KIT |

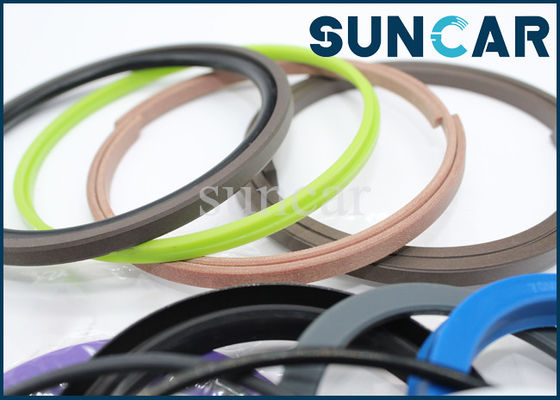

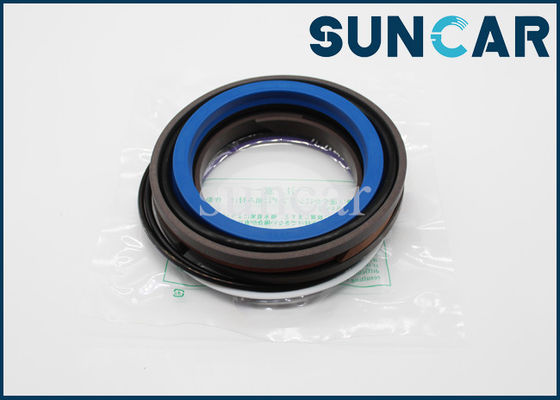

Product Show:
|
|
